TOWABLE BOOM LIFT 43′
$ 29.00

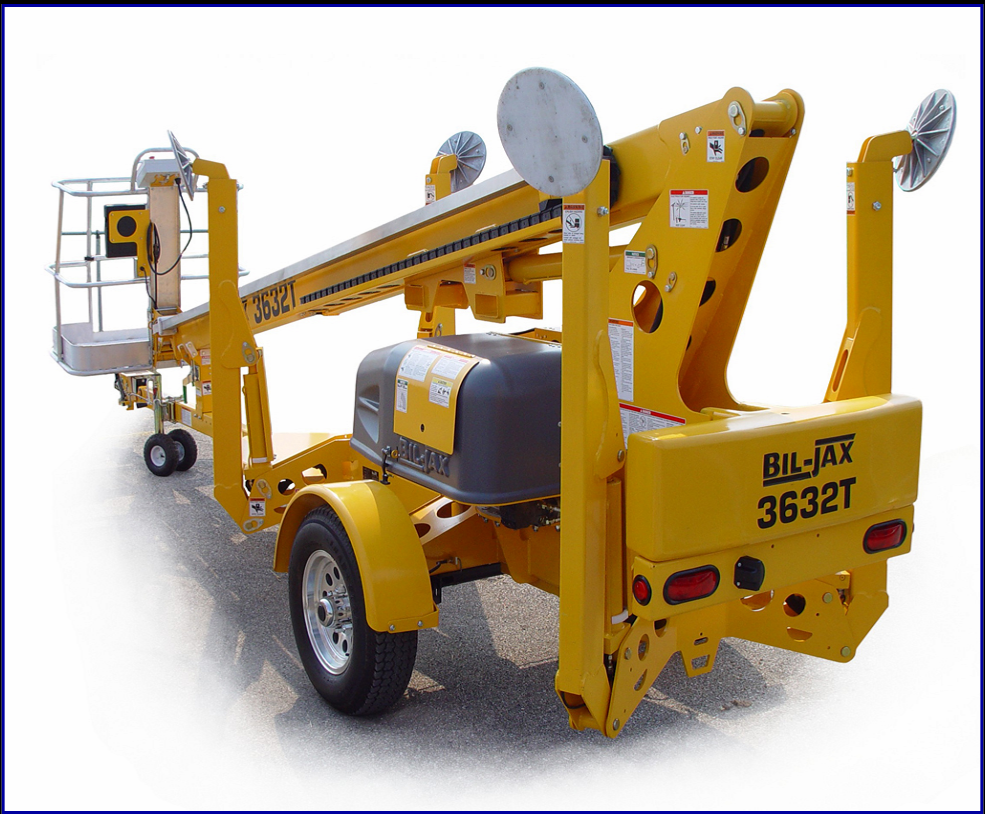

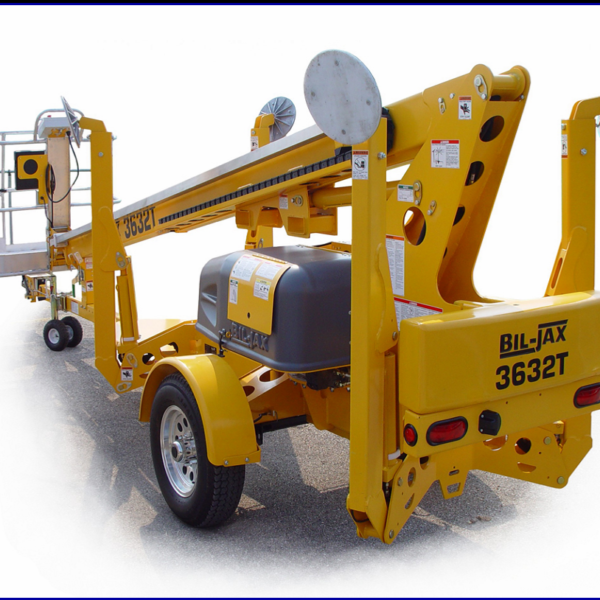

The 3632T telescopic aerial work platform provides 42 ft. of working height and 32 ft. of outreach and features an automatic, self-leveling hydraulic outrigger system. The 3632T is available with a 24-volt DC battery system. Other features include a rated load capacity of 500 lbs., 350-degree turntable rotation, hydraulic surge and parking brakes, forklift pockets, outrigger interlocks, a two-person platform and a 110-volt GFI duplex outlet at the platform level. The 3632T can be operated from either the ground or the platform, through a display panel with control buttons that are logically placed around a single machine image for easy identification. The 3632T is versatile and can be converted into a light-duty crane.
CLICK HERE for operators manual and safety information

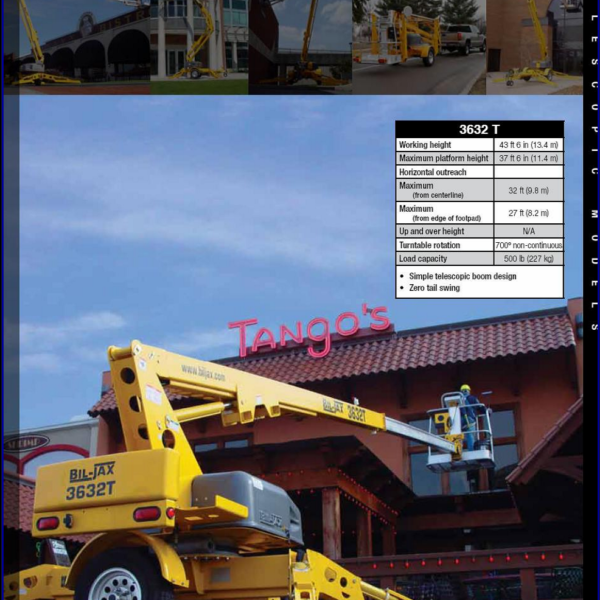

| Working height | 43 ft 6 in |
| Platform height | 37 ft 6 in |
| Horizontal outreach (from centerline) | 32 ft |
| Horizontal outreach (from edge of footpad) | 27 ft |
| Up and over height | N/A |
| Lift capacity | 500 lbs |
| Length – stowed | 22 ft 8 in |
| Width stowed | 5 ft 6 in |
| Height stowed | 6 ft 6 in |
| Platform size | 4 ft 1 in x 2 ft 9 in |
| Turntable rotation | 350° non-continuous |
| Jib – length | N/A |
| Jib – Vertical Motion | N/A |
| Tow speed rating | 65 mph |
| Leveling capability | 12.5 ° |
| Tire size | ST 225/75 R15 |
| Power source | 4 x 6 V 245 amp-hr |
| Tongue weight (no options) | 200 lbs |
| Weight (no options) | 4440 lbs |
| Widest Point | 13 ft 9 in |
| Widest Point | 13 ft 6 in |
